SPEAKER AKTIF SPL AUDIO DGS15ST

15" SPEAKER BOX
2 WAY CONFIGURATION WITH AKTIVE FILTER
POWER RATING RMS: 600W
POWER RATING MAX :1200W
LF DRIVER :15" WOOFER,2,5"VC,HF DRIVER TITANIUM1"
WITH CLASS D AMFLIFIER
INPUT CONNECTOR : XLR OR 1/4" OR 3,5MM JACK
OUTPUT CONNECTOR :XLR BALANCED ,ED:80HZ-12KHZ
FUNCTION :STEREO BLUETOOTH

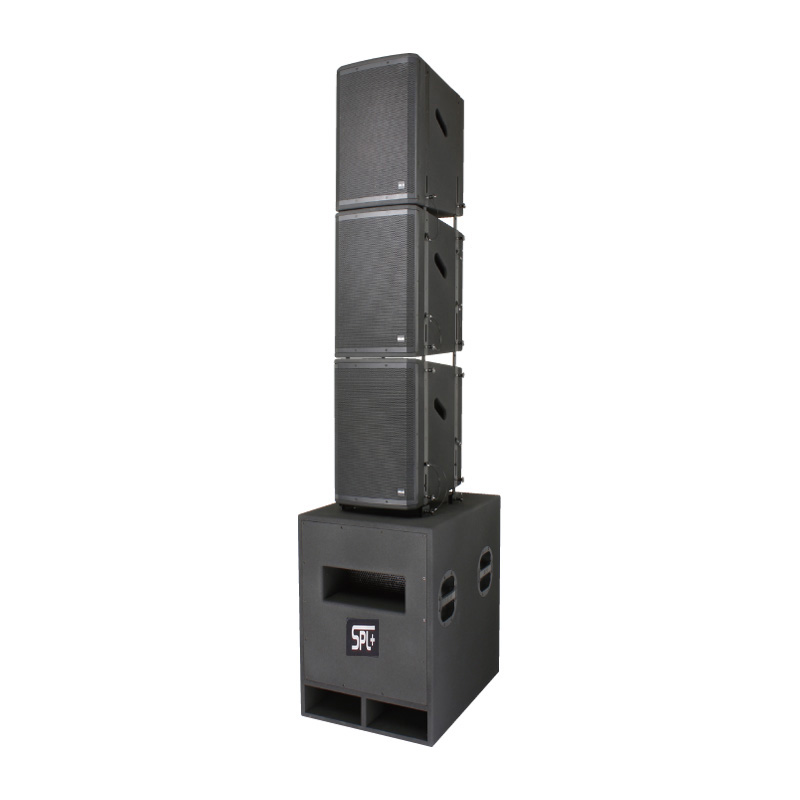

SPEAKER LINE ARRAY AKTIF SPL+ LT12

SPEAKER COAXIAL : 12" + 3"
LOW SPEAKER : 12"
CLASS D AMPLIFIER: 1100W RMS
SPEAKER COMPONEN : NEODIUM
DSP.IN & DSP.OUT

SPEAKER SUB AKTIF SPL+3600

LF Driver: 2 x 18”, 4” VC
Amplifier: 1000W + 1000W Class D
FREQ RESP(-3dB): 40Hz-100Hz
FREQ RESP(-10dB): 35Hz-100Hz
Low-pass filter: 70Hz-120Hz Low-pass filter select switch
Phase: Phase switch 0-180°
Audio Processing: DSP - 48KHz - 56bits

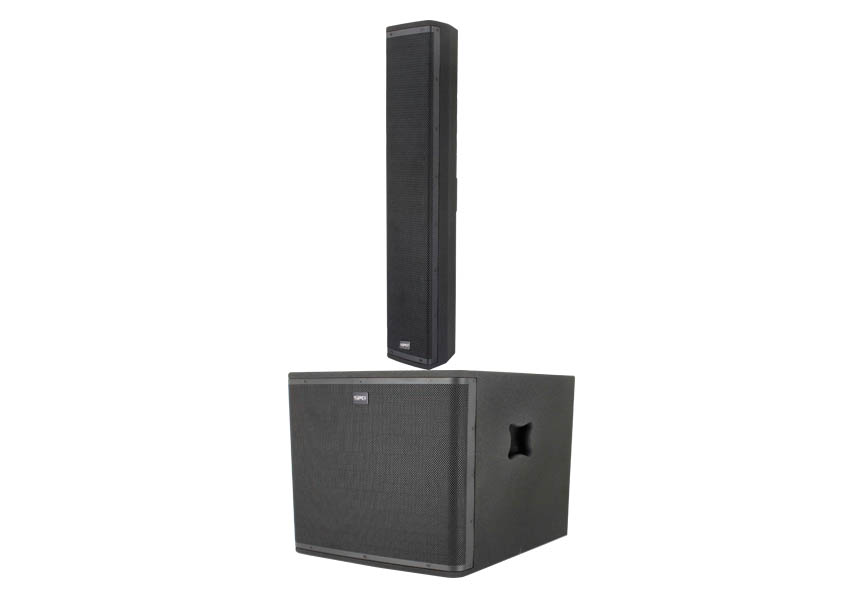

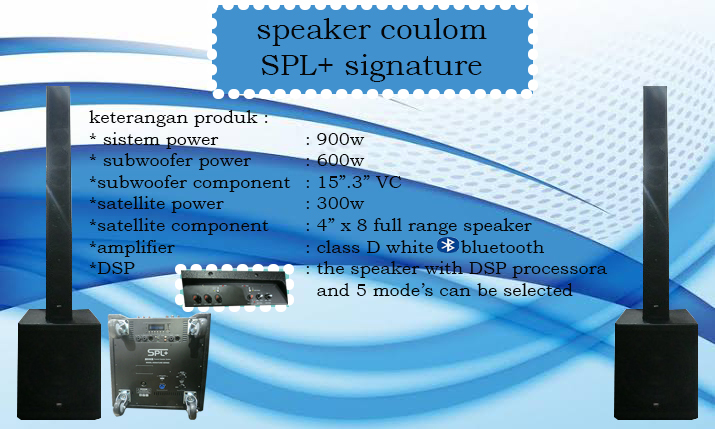

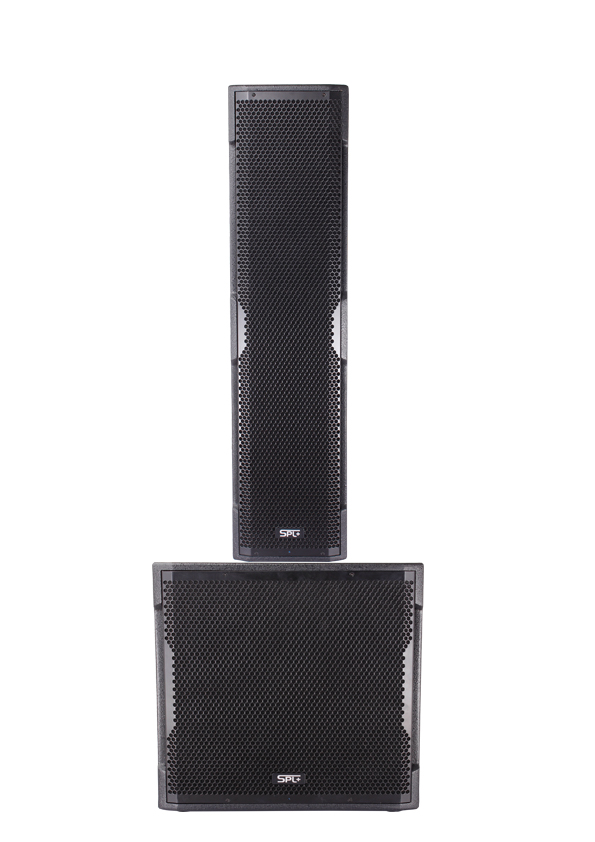

SPEAKER COLUMN AKTIF SPL+ SIGNATUR

System Power: 900W
Satellite Power: 300W
Satellite Components: 4" x 8 Full Range Speaker
Amplifier: Class D, Bluetooth
DSP: the speaker with DSP processor and 5 modes can be selected
System Freq. Resp: 40Hz~18KHz +/-3dB

SPEAKER SUB AKTIF SPL+ SIGNATURE

Subwoofer Power: 600W
Subwoofer Components: 15", 3"VC
Satellite Power: 300W
Amplifier: Class D, Bluetooth
DSP: the speaker with DSP processor and 5 modes can be selected
Subwoofer Freq. Resp: 40Hz~180Hz +/-3dB

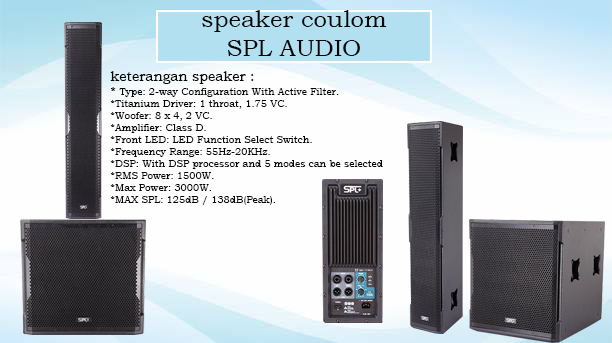

SPEAKER COLOMN AKTIF SPL+ 8x4

Cabinet: 15mm Plywood- Paint Box
Type: 2-way Configuration With Active Filter
Titanium Driver: 1” throat, 1.75” VC
Woofer: 8” x 4, 2” VC
Amplifier: Class D
Front LED: LED Function Select Switch
Frequency Range: 55Hz-20KHz
DSP: With DSP processor

SPEAKER SUB AKTIF SPL+ 18WA

Cabinet: 18mm Plywood - Paint Box
Woofer: 18”, 4” VC
Amplifier: Class D
Front LED: LED Function Select Switch
Frequency Range: 45Hz-150Hz
Low-pass filter: 80Hz-150Hz Low-pass filter select switch
Phase: Phase select switch

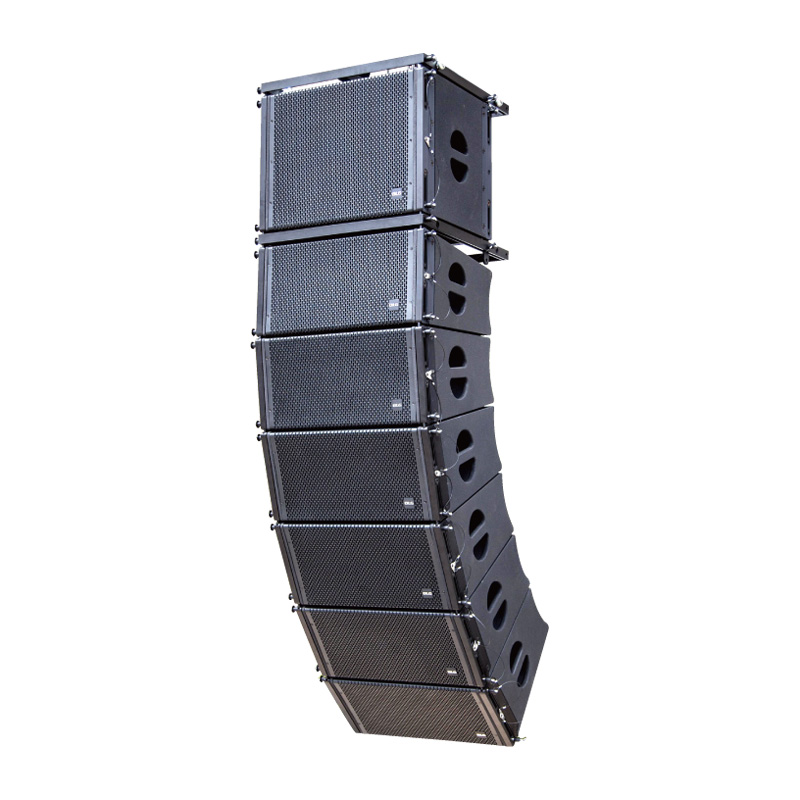

SPEAKER LINE ARRAY AKTIF SPL+ 10x1

Power rating RMS,350w
Power rating MAX,700w
Frequency response +/-3db,65Hz-20KHz
Frequency response -10db,50Hz-18KHz
coverage patern (HxV) ,100'x ,15'
MAXIMUM SPL ,122db / 138db (peak)
LF driver 10" woofer ,3"VC ,Neodynium
HF driver 1.4" exit ,3" VC , Titanium

SPEAKER SUB AKTIF SPL+15A

System type: 15” Line Array Module
Power Rating RMS: 1000W
Power Rating MAX.: 1800W
Frequency response +/-3dB: 50Hz-100Hz
Frequency response -10dB: 45Hz-100Hz
Maximum SPL: 129dB / 136dB (Peak)
LF Driver: 15” Woofer , 4” VC
Amplifier type: D-Class with DSP

SPEAKER LINE ARRAY AKTIF SPL+ 6x8

* Type = aktive vtype structure
* power (RMS) : 400w
* Power Max : 800w
* Freq response : 150hz,20khz
* Max SPL ( peak ) : 136db
* Amplifier type : D-class
* Delay : 0-36 ms

SPEAKER SUB AKTIF SPL+ 18A

Type: Active Band-pass Subwoofer
Drivers: 1 x 18" Woofer / 4" VC
Power ( RMS): 1000W
Power (Max.): 2000W
Freq. Response: 40Hz- 120Hz
Max SPL ( PEAK): 137dB
Amplifier type: D-class

SPEAKER LINE ARRAY PASIF SPL+ VERA36

Drivers LF: 2 × 10"
MF: 2 × 8"
HF: 2 × 1.4" exit with 3" diaphragm
Frequency range 60 - 16000 Hz
Power capacity program / peak 1000 / 2000 W LF
800 / 1600 W MHF
Impedance 8 Ω LF
8 Ohms MHF
Coverage (h × v) 80° or 120° × 10°
Sensitivity 1 W / 1 m 98 dB LF
110 dB MHF
SPLmax / 1 m 141 dB

SPEAKER LINE ARRAY AKTIF SPL+ LT12 12X2

# Speaker Line array 12in x 2 SPL+
* Speaker Coaxial 12" + 3"
* Low Speaker 12"
* Class-D amplifier 1100W RMS
* Speaker Komponen Neodium
